Model 200 Stereo Multiplexer

Model 200 Stereo Multiplexer™

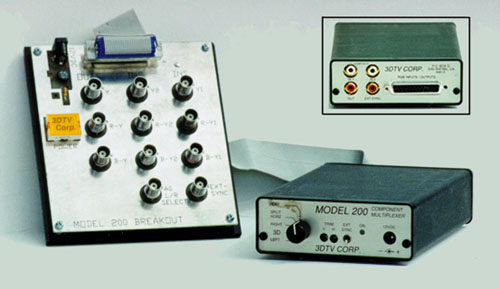

The MODEL 200 is used to multiplex (combine) dual source video, such as two cameras, into a single output stream.
One use for this is to produce field alternate 3-D stereoscopic videotapes.
Full RGB component multiplexing is available, 6 inputs and 3 outputs are provided.

The Model 200 selects one of two sets of inputs and applies it to the outputs in a field alternate manner, i.e., the left field is output from INS-1 and the right field is output from INS-2.

FEATURES

Multiplexes many video formats including NTSC, PAL, and most component video such as RGB.
Output is front panel selectable. Allows you to output either source independently or multiplexed.
Output may be split-screened, either horizontally or vertically for parallax adjust and other adjustments.
Split points are front panel adjustable.
Sync on Y1 (internally patchable to Y2) or an EXTernal composite SYNC
External Multiplex select on input AO is available
DC restoration circuit on each of six inputs
